Android导入burpsuite证书后拦截https请求显示服务器证书有效期太长

1. 说明

在对android手机渗透测试时,会经常使用拦截工具拦截请求报文,其中burpsuite是比较常用的安全工具,针对Android手机配置burpsuite证书操作请参考末尾。

在导入系统级证书后,拦截https报文,小程序会弹框提示连接错误:NET::ERR_CERT_VALIDITY_TOO_LONG

在CA/Browser论坛发布的官方指导中有明确规定证书有效期的限定,订阅的证书在签发之后有效期不得超过60个月,在2015年4月1日之后签发的证书有效期不得大于39个月。并且针对SHA-1算法的有效期也做了限定,自2017-1-1起CA中不应该再使用SHA-1算法。

 9.4 Validity Period
 9.4.1 Subscriber Certificates
 Subscriber Certificates issued after the Effective Date MUST have a Validity Period no greater than 60 months.
 Except as provided for below, Subscriber Certificates issued after 1 April 2015 MUST have a Validity Period no
 greater than 39 months.
 Beyond 1 April 2015, CAs MAY continue to issue Subscriber Certificates with a Validity Period greater than 39
 months but not greater than 60 months provided that the CA documents that the Certificate is for a system or
 software that:
 (a) was in use prior to the Effective Date;
 (b) is currently in use by either the Applicant or a substantial number of Relying Parties;
 (c) fails to operate if the Validity Period is shorter than 60 months;
 (d) does not contain known security risks to Relying Parties; and
 (e) is difficult to patch or replace without substantial economic outlay.
 Forum Guideline
 CA / Browser Forum Baseline Requirements, v. 1.2.3 (as of 16 October 2014) 14
 9.4.2 SHA‐1 Validity Period
 Effective 1 January 2016, CAs MUST NOT issue any new Subscriber certificates or Subordinate CA certificates
 using the SHA-1 hash algorithm. CAs MAY continue to sign certificates to verify OCSP responses using SHA1
 until 1 January 2017. This Section 9.4.2 does not apply to Root CA or CA cross certificates. CAs MAY continue to
 use their existing SHA-1 Root Certificates. SHA-2 Subscriber certificates SHOULD NOT chain up to a SHA-1
 Subordinate CA Certificate.
 Effective 16 January 2015, CAs SHOULD NOT issue Subscriber Certificates utilizing the SHA-1 algorithm with an
 Expiry Date greater than 1 January 2017 because Application Software Providers are in the process of deprecating
 and/or removing the SHA-1 algorithm from their software, and they have communicated that CAs and Subscribers
 using such certificates do so at their own risk.

Burpsuite的证书有效期已经大于39个月,在Android Chrome内核上会产生上述报错,提示证书有效期过长,如下所示:

2. 通过生成自定义证书的方式解决该问题

方法比较简单,就是通过生成自定义的有效期小于39个月证书,然后分别导入Burpsute和Android中。

  1. 生成自签名证书,采用自动生成密钥的方式,指定有效期、密钥长度,按照命令提示输入C/N等信息

openssl req -x509 -nodes -days 365 -newkey rsa:2048 -keyout pk.key -out certificate.crt

  1. 生成pkcs12文件,输入密钥

openssl pkcs12 -export -out certificate.p12 -inkey pk.key -certfile certificate.crt -in certificate.crt

  1. 导出certificate.p12文件

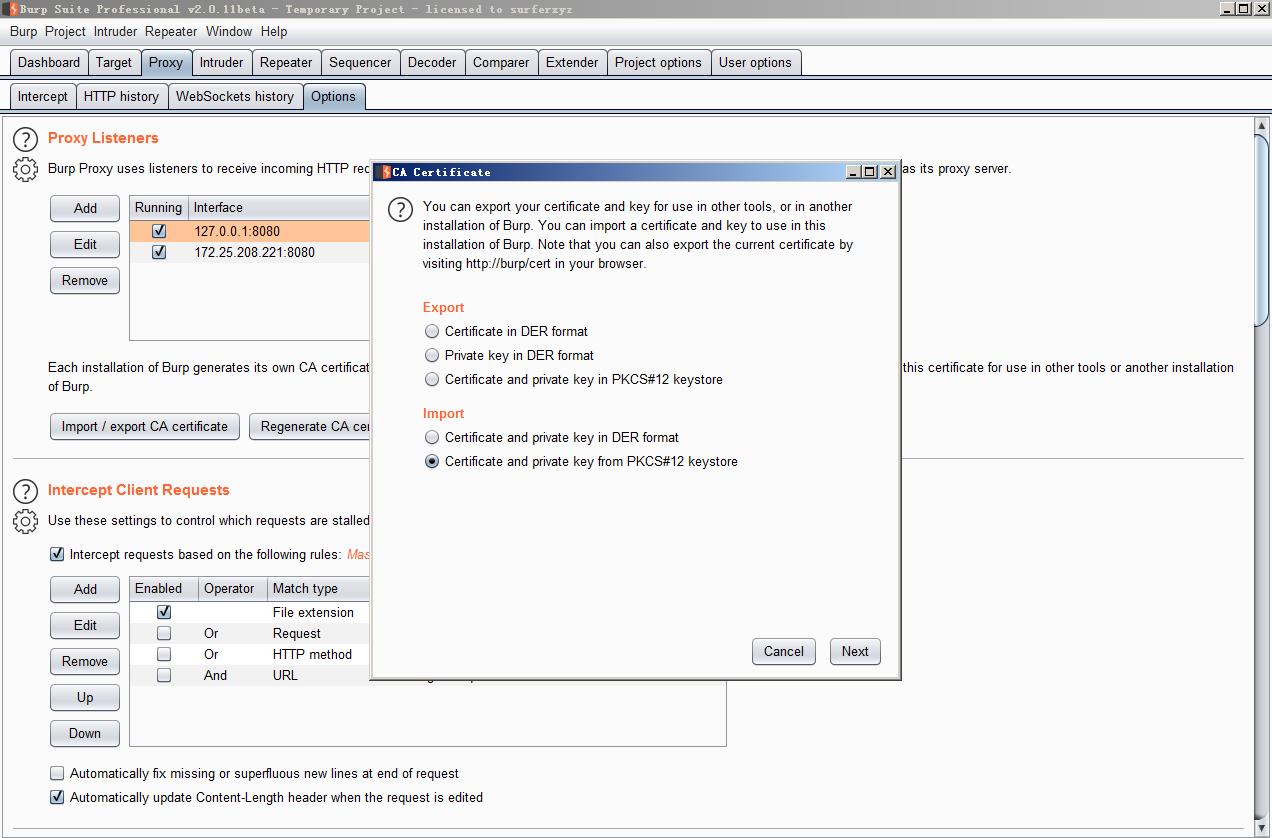

  2. 将certificate.p12证书keystore导入Burpsuite

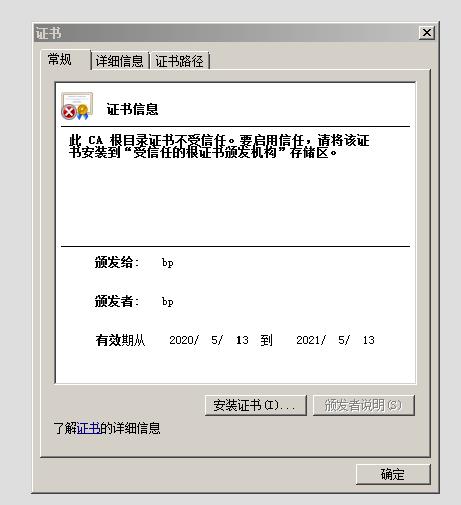

  3. 访问http://localhost:8080下载CA证书,cacert.der

  4. 转换生成pem证书,并导入Android /system/etc/security/cacerts目录下(需root权限)

至此问题解决。

Android手机配置burpsuite证书操作

按该链接的提示进行操作即可:https://www.jianshu.com/p/521CC119F38C
